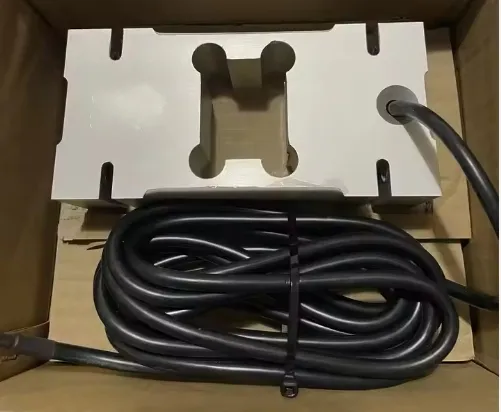

Parallel Beam Load Cell
Model Number:BC210
Capacity :50KG,200KG,250KG,500KG,750KG,1000KG,2000KG
Packaging Details: Inner pack: 1pc/ box Outer pack: standard exporting carton
Type: Planar type weight sensor
Application: high accuracy electronic price computing scale
Defend grade: IP65.
Description
Parallel Beam Load Cell Sensor
Parallel Beam Load Cell Sensor With excellent measurement accuracy and stability,Parallel Beam load sensors are integrated into many industrial production processes and cooperate with control systems to achieve intelligent management and quality control.
Parallel Beam Load Cell Sensor Using advanced micro-electro-mechanical system (MEMS) technology, nanomaterials and quantum sensing technology, the new sensor has better sensitivity and stability
Parallel Beam Load Cell Sensor can accurately measure weight even in complex and harsh industrial environments
Parallel Beam Load Cell Sensor
Parallel beam load cell sensor In the food processing industry, load cells are essential to ensure product standardization and safety. From raw material screening to finished product packaging
Parallel beam load cell sensor accurate weight measurement is everywhere. For example, when purchasing raw materials, load sensors ensure the exact weight of each batch of raw materials, avoiding production disruptions or quality issues.
Parallel beam load cell sensor In food processing, precise weight control ensures that the taste and quality of each product is uniform and meets consumer expectations.

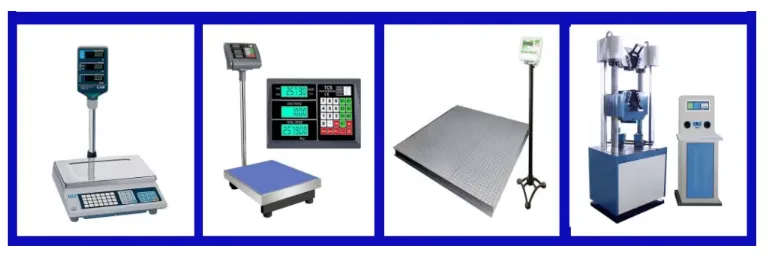

Parallel beam load cell sensor Widely used for high accuracy electronic price computing scale, electronic counting scale, electronic balance, Bee hive scale, intelligent vending machine, Iot Smart shelf etc. Special for installed in humid environment, it will not short circuit, will not affect the accuracy and performance for long term using.
Parallel Beam Load Cell Sensor
Parallel Beam Load Cell Sensor
|
Technical Specification
|
|||
|
Capacity: 50,100, 150, 200, 250, 500,750,1000,2000kg
|
Aluminum Alloy Material
|
||
|
Maximum number of load cell intervals (nLC) :
|
3000nmax
|
||
|
Ratio of minimum LC verification interval Y=E max / V min
|
Emax/7000
|
||
|
Temperature effect on sensitivity
|
≤±0.0175%FS/10°C
|
||
|
Temperature effect on zero
|
≤±0.020%FS/10°C
|
||
|
Creep(30min):
|
≤±0.0167%FS/30min
|
||
|
Accuracy Class:
|
C3
|
Combined error :
|
0.02%FS
|
|
Output Sensitivity:
|
2.0 ± 0.2mV/V
|
Zero balance :
|
< ± 2.0%FS
|
|
Safe overload:
|
120%FS
|
Input resistance:
|
406 ± 6Ω
|
|
Ultimate overload:
|
150%FS
|
Output resistance:
|
350 ± 3Ω
|
|
Excitation, Recommended:
|
5~12Vdc
|
Insulation resistance:
|
≥ 5000MΩ @ 50 Vdc
|
|
Excitation, Max:
|
18Vdc
|
Corner correction :
|
0.02%load value/100mm
|
|
Temperature compensated:
|
-10～+40℃
|
Installation torque:
|
20N.m
|
|

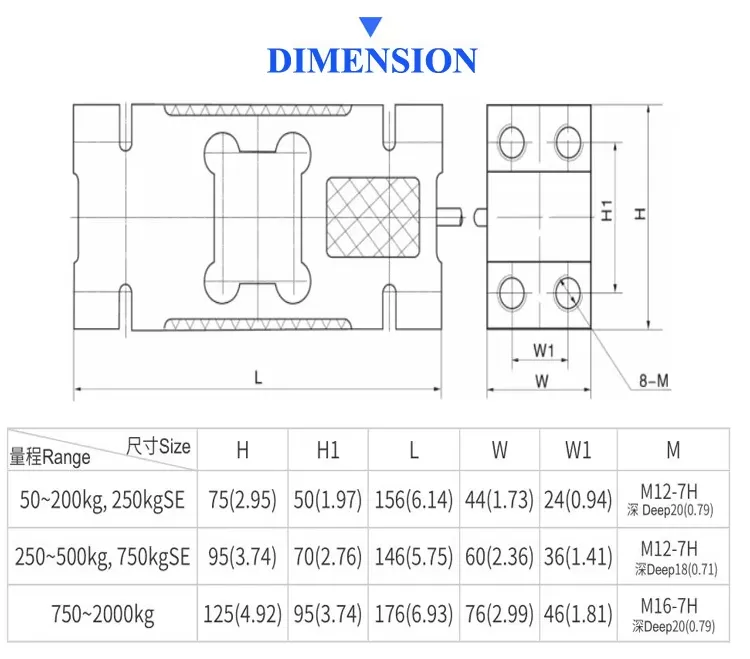

Maximum platform size:
|
mm
|
50kg~200kg
|
600×600mm
|
|
250kg~500kg
|
600×800mm
|
||
|
750kg~2000kg
|
1200×1200mm
|
||
|
Recommend installation torque:
|
M12(50-500kg)100 N.m M16(750-2000kg) 160 N.m
|
||
|
Temperature allowed:
|
-35～+70℃
|
Protection Class:
|
IP65
|
